Transmission Line Robots DLR SENSOR
Yog tias koj xav tau kev sib kis kab mob robots dlr sensor los pab nrog koj lub lag luam, thov kom dawb mus yuav nrog peb lub Hoobkas. Raws li ib qho ntawm cov ua lag luam nyob hauv Suav teb, peb yuav muab koj cov nqi qis thiab cov kev pabcuam tsis sib xws.

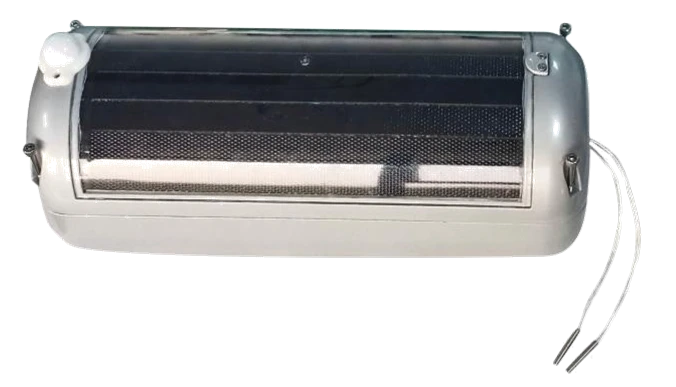

Multi-Dimensional Conductor Sensor yog qhov qis- lub zog, siab - qhov tseeb sensor raws li 4G kev sib txuas lus. Nws ntsuas tus neeg xyuas pib sag, tus neeg xyuas pib galloping, thiab tus neeg xyuas pib cua deflection, nrog rau tus neeg xyuas pib kub thiab tus neeg xyuas pib tam sim no.
Nws koom ua ke GNSS module rau GPS qhov chaw thiab lub sijhawm synchronization.
Nws suav nrog 485 expansion interface rau ntsuas qhov kub thiab txias, av noo thiab lub teeb siv.
Ua -in rechargeable lithium roj teeb: 9.6 V, 3 Ah. Roj teeb nthuav dav muaj nyob rau ntawm qhov kev thov.
Yeem 2.4 GHz module siv los ua lub davhlau ya nyob twg 2.4 GHz.
Ua -hauv Rogowski kauj rau kev ntsuas tam sim no. Lub coil tso zis yog amplified thiab hloov mus rau hauv proportional hluav taws xob teeb liab. Lub kaw lus xam qhov tam sim no ntawm AD sampling thiab mob siab rau algorithms.
Khoom nta
Yam khoom |
Ntau & Qhov tseeb |
Cua deflection lub kaum sab xis / qaij lub kaum sab xis |
± 60 degree; Qhov tseeb: 0.1 degree, yuam kev: ± 0.3 degree |
Longitudinal / lateral inclination |
−10℃~ +10 degree; Qhov tseeb: ± 0.1 degree |
Conductor kub |
−55℃~ +150 degree |
Tus neeg xyuas pib tam sim no |
0–600 A |
Qhov tseeb tam sim no |
5% los yog ± 5 A |
Rated voltage |
35 kV - 1000 kV |
Siv tau conductor txoj kab uas hla |
Tsawg dua los yog sib npaug li 40 mm |
Roj teeb muaj peev xwm |
3 Aw |
Fais fab mov |
CT zog sau / hnub ci sau |
Ua haujlwm kub |
−40℃~ +85 degree |
Kev sib txuas lus tus nqi |
Uplink: 50 Mbps; Downlink: 150 Mbps |
Uplink qauv |
4G, EDGE, GSM / GPRS |
Lub zog raws tu qauv |
Transmission I1 Interface raws tu qauv |
Zaus band |
2.4 GHz - 2.5 GHz |
Kev sib txuas lus nrug |
Ntau tshaj lossis sib npaug li 100 m |
raws tu qauv |
IoT Micro-power Wireless Network Protocol rau Fais Fab Kis thiab Cov Khoom Siv Hluav Taws Xob |
Sensors, Feature List
| Module | Muaj nuj nqi |
|---|---|
| ARM Microcontroller | Main tswj chip |
| 9-Axis Attitude Sensor | Cua deflection ntsuas / Sag ntsuas |
| 485 cais kub & Humidity Sensor | Kev ntsuas kub thiab av noo |
| Dual{0}}channel PT100 Sensor | Kev ntsuas kub |
| Lub teeb siv Sensor | Kev ntsuas lub teeb ci |
| Tam sim no saib xyuas Module | Tus neeg xyuas pib ntsuas tam sim no |
| CT Energy Harvesting & Fais Fab Module | Inductive zog sau |
| Kev sib txuas lus Module | 4G kev sib txuas lus |
| 2.4 GHz RF module | Kev sib txuas lus wireless |
| Kev ruaj ntseg Encryption Module | Encryption |
| GPS Module | GPS positioning |
| Kev tiv thaiv (IP65-rated) | -- |

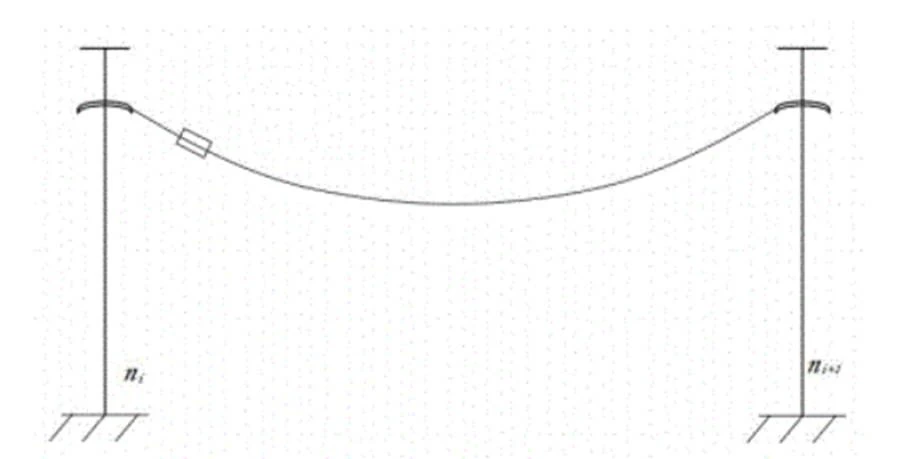

Installation thiab siv
