Cov Fibre Fusion
Txheeb xyuas

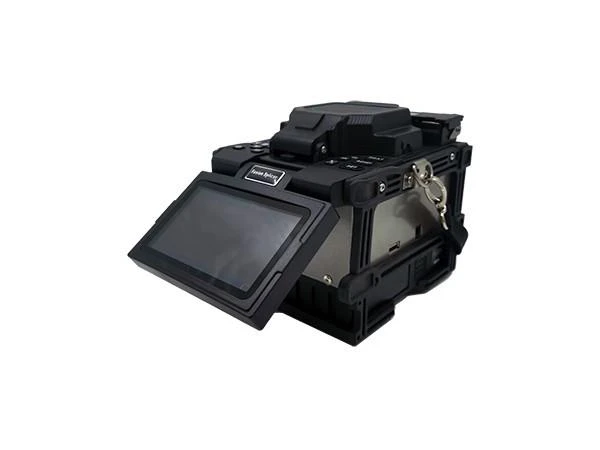

Senter ST3100D yog ib hom fusion splicer uas muaj 6s rau splicing thiab 26s rau cua sov Electrodes tawm ntau tshaj 4000 zaug 360 ° roj hmab tiv thaiv kev tiv thaiv tshuab los ntawm kev poob siab, dej thiab plua plav 5800mAhLi-roj teeb, ntau tshaj 200 cycelsplicing & cua kub Muaj ntau lub clamps clamps, thov mus rau liab qab fibers, poob cable, pigtail thiab lwm yam.
Nta
◆ 6s rau splicing thiab 26s rau cua sov
◆ Electrodes tawm ntau tshaj 4000 zaus
◆ USB chaw nres nkoj rau software muab kho dua tshiab thiab cov ntaub ntawv khaws cia tawm,
◆ TAU duab duab ua cov zauv, cov cwj pwm ua tub ntxhais kawm ua ke,
◆ ARC ntsuas los ntawm kub thiab cua txias tuaj,
◆ 360 rubber cov ris tsho tiv thaiv kev siv tshuab, poob siab, dej thiab hmoov av
◆ 5800mAh Li-roj teeb, ntau tshaj 200 cycles splicing & cua sov
◆ Muaj lub plhaub clamps, siv rau daim npav liab qab, poob qis, pigtail thiab lwm yam.
Specification
Fiber ntau | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), lwm tus (nrog rau G.657) |
Fiber ntau | SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
Txoj kab uas hla | 80-150μm |
Ncaub ntawm txheej | 160 - 900μm |
Nres raug ploj | SM: 0.02dB, Hli: 0.01dB, DS: 0.04dB, NZDS: 0.04dB |
Rov qab poob | > 60db |
Fiber cleaved ntev | 10-16mm (txheej diameter <250μm), 16mm="" (txheej="" diameter:=""> |
Splicing program | 40 pawg |
Ua haujlwm hom | Kev Tuav, Tsis Siv Neeg |
Pib-cua sov | Muaj |
Lub sijhawm splicing | 6 vib nas this |
Tube cua lub sijhawm | 26 vib nas this rau 60mm thiab 40mm shrinkable tes tsho |
Fiber saib magnification | 250 X (X lossis Y saib), 125 X (X thiab Y pom) |
Saib txoj kev thiab duab | 2 CMOS koob yees duab, 4.3 nti xim LCD saib |
Cia ntawm kev faib ua ke | 4000 xav tau |
Kev ntsuam xyuas poob qis | Muaj |
Kev ntsuas nruj | 1.8-2.2N |
Interface | GUI zaub mov interface, haujlwm yooj yim dua |
Roj teeb muaj peev xwm | 5800mAh LI-roj teeb, raug 200 hneev taw (splice thiab raj cua sov) |
Lub hwj chim | Adapter, tswv yim: AC100-240V (50 / 60HZ), tso tawm: DC11-13.5V |
Electrode lub neej | Ntau tshaj 4000 ARC tso tawm, yuav hloov tau yooj yim |
Terminals | USB 2.0 chaw nres nkoj, rau uploading splice tau thiab software upgrade |
Kev khiav haujlwm | Tshaj: 0-5000m, Vaum: 0-95%, Kub: -10 ℃ ~ + 50 ℃; Cua ceev: max 15m / s |
Dimension | 149mm (L) x120mm (W) x127 hli (H) |
Nyhav | 1.9kg nrog rau roj teeb |
Pob | Ntim hauv cov thawv nrog kev tiv thaiv ua npuas dej, Qhov Loj 43cm * 37cm * 27cm, GW6.5kg |
