ST3820 Ua rau VFL Optical Fiber Identifier, roj teeb qhuav
ST3820 kho qhov muag fiber ntau Identifier uas los ua VFL muaj nuj nqi optical fiber tester
I. tus txheej txheem cej luam
ST3820 yog ib tug handheld Optical Fiber Identifier uas yog tsim los rau optical fiber plahaum thiab nkawm. Nws combines OFI nrog VFL ua ib tester. Nws yuav tsis tsuas paub lub optical fiber ntau, tab sis kuj siv los ua cov kev txhaum locator. Lub zog yog yooj yim thiab me me. Nws yog ib qho yooj yim uas koj muaj rau tus neeg teb xov tooj.
II. loj zog
Kev them nyiaj yug los lawm mas, kho qhov muag pib ntsais koj teeb tsis tshuam tsheb; raws li cov-tug tshuab
Qhia tau tias cov kev taw qhia teeb liab hauv fiber ntau
Lawm mas muaj ntau yam kev kho qhov muag tones, 270Hz, 1kHz thiab 2kHz
Tsis tsim 0.25 hli, 0.9 Hli, hli 3.0 fiber ntau thiab tsis xav muab lub clamp nplov, teem dua lwm tus
Lawv muaj kev txhaum thiaj pom locator 1mW los yog 10mW yeem
Roj teeb yeej tsis tshua muaj
Powered ntawm 2 chav nyob ntawm 1.5V AA roj teeb alkaline
III. Main xeeb ceem
Khoom | ST3820 | |
Wavelength khwv | 900 rau 1700nm (SM) | |
Yam coj los teeb liab | CW, 2kHz, 1kHz, 270Hz ±10% | |
Yam ntes | InGaAs 2pcs | |
Fiber ntau yam | 0.9, 0.25, fiber ntau hli 3 | |
Translation | 1310nm | + 10dB rau - 20dBm (nruam yoj) |
+ 10dB rau - 15dBm (Modulated teeb liab) | ||
1550nm | + 10dB rau - 30dBm (nruam yoj) | |
+ 10dB rau - 25dBm (Modulated teeb liab) | ||
Qhov taw qhia LED | Teeb liab lawm. teeb liab zaus (2kHz / 1kHz / 270Hz); tsis tshua muaj roj teeb | |
Siv teeb liab | 0 ~ 40 | |
Kub cia | -20 -- +70 ℃ | |
Kev khiav hauj lwm muaj kub | -10 -- +60 ℃ | |
Tus txheeb ze vaum | andlt; 95% | |
Fais fab mov | AA * 2 | |
Raws li cov | 230 hli * 45 hli * 45 hli | |
Yuag | 200g | |
IV. Accessories
Txuj | Userand #39; s los ntawm txhais tes | 1 |
Daim ntawv no calibration | 1 | |
ST3820 Optical Fiber Identifier | ||
Kem | 1 | |
Yeem | 1 mw kev txhaum Locator | 1 |
10 mw kev txhaum Locator | 1 |

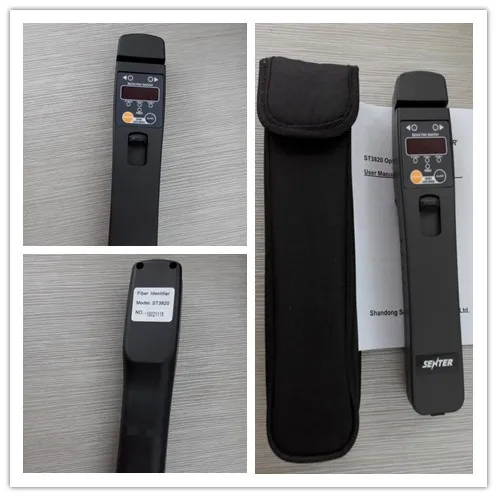

Duab:
Warehouse:
Forwarders:
Yog hais tias koj xav tau los ua nyob rau hauv vfl optical fiber identifier st3820, roj teeb qhuav pab nrog koj ua lag ua luam, thov tsis pub mus yuav nrog peb koom xwm. Ua ib tug tus ua tej manufacturers los nyob rau hauv Suav teb, peb yuav muab rau koj uas tsis muaj nqi thiab unmatched cov kev pab.
Cim npe nrov: st3820 ua rau vfl optical fiber identifier, qhuav roj teeb, Suav teb, manufacturers, hoobkas, uas tsis muaj nqi, yuav
