Rugged Tablet Nrog 2D Barcode Scanner
Cov yam ntxwv tseem ceeb:
√8 0-inch HD npo
√Android 9 0 system
√4G RAM, 64G ROM, 4G LTE
√Qualcomm MSM8953 Octa tub ntxhais 2GHz
√Barcode scanning, RFID nyeem ntawv, txheeb xyuas tus ntiv tes
√10000mAH roj teeb (Wide kub roj teeb)

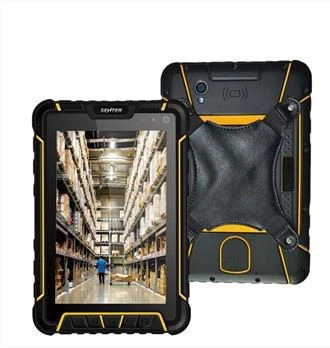

SENTER S917V10 Rugged Tablet
Android 9.0 OS, Octa core, 2Ghz CPU Rugged Tablet PC nrog 4G LTE
Kev xaiv ua haujlwm: LF / NFC / UHF RFID nyeem ntawv, 1D / 2D bar code scanner
| Ntsiab nta | |||||||||||||
{{0}} Android 9.0 operating system; CPU MSM8953, 8 core, 2GHz CPU; RAM 4GB ROM 64GB, Micro SD 128G
-- Peb-pov thawj tsim: IP67 qib peb tiv thaiv, poob tsis kam ntawm 1.2m
-- Pom tau nyob rau hauv lub teeb muaj zog; 8 nti LCD npo, 1280 * 800 (Optional: 1920x1200) IPS capacitive touch screen
- Lub zog muaj nuj nqi: ntau cov ntaub ntawv tau txais kev teeb tsa (1D / 2D bar code scanning, LF / HF / UHF RFID nyeem ntawv)
-- Ntau hom kev sib txuas lus: txhawb 4G, WIFI, Bluetooth thiab ntau hom kev sib txuas lus wireless
-- Lub roj teeb muaj zog: 10000mAh Lithium roj teeb
-- Daim ntawv pov thawj: CCC/CE/ROSH/FCC/IP67/MIL-STD-810
-- Chaw nres tsheb Docking: Ua kom lub ntsiav tshuaj them yooj yim dua
| Specifications | |||||||||||||
| Kev ua tau zoo | Hnub Sib Tham | ||||||||||||
| Qhov system | Android 9 0 | WIFI | Txhawb IEEE 802.11a/b/g/n/ac | ||||||||||
| CPU | MSM8953, 8 core CPU, 2GHz | BLUETOOTH | Txhawb nqa 4.2 | ||||||||||
| GPU | Qualcomm® Adreno™ 506 GPU, 650Mhz | GPS | GPS ntxiv rau BDS ntxiv rau GLONASS, Txhawb nqa qhov tseeb GPS module (Ublox M8N / M8P, qhov tseeb yog 0.5-3M) | ||||||||||
| USB Chaw nres nkoj | Hom-C USB chaw nres nkoj; Txhawb kom txuas U-disk / Nas / Keyboard / OTG kab | 2G / 3G / 4G LTE | Tuam Tshoj / Is Nrias teb: LTE FDD: B1/B3/B5/B5 LTE TDD: B34/B38/B39/B40/B41 WCDMA: B1/B8 TD-SCDMA: B34/B39 EVDO/CDMA: BC0 GSM: 900/1800MHz | ||||||||||
| Sab nraud chaw nres nkoj | Charge port, headphone port | Teb chaws Europe / Africa: LTE FDD:B1/B3/B5/B7/B8/B20/B28 LTE TDD: B38/B40/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHZ | |||||||||||
| Lub koob yees duab | 5 lab pixels pem hauv ntej lub koob yees duab, 13 lab pixels rear koob yees duab nrog tsis siv neeg tsom xam thiab teeb pom kev zoo muaj nuj nqi | ||||||||||||
| Zaub Screen | 8 nti LCD npo, 1920 * 1200IPS 500nits brightness standard, capacitive touch screen | Asmeskas: LTE FDD: B2/B4/B5/B7/B8/B12/B13/B14/B25/B26 LTE TDD: B41 WCDMA: B1/B2/B4/B8 GSM: 850/1900MHZ | |||||||||||
| Lub cev Parameter | Tus neeg siv ib puag ncig | ||||||||||||
| Qhov ntev | 232*158*22 | Ua haujlwm kub | -20 degree ~ ntxiv rau 60 degree | ||||||||||
| Qhov hnyav | 810g | Cia Kub | -40 degree ~ ntxiv rau 70 degree | ||||||||||
| Keyboard | Hauv ntawv qhia zaub mov, Homepage, Rov qab, ntim, Barcode, ON/OFF, Rov pib dua | Cov av noo | 5 feem pua -95 feem pua txheeb ze av; tsis muaj condensation | ||||||||||
| Headset | 3.5mm audio Interface, muaj MIC thiab ib lub suab nrov | ||||||||||||
| LED Qhov taw qhia teeb | Txhawb nqa | ||||||||||||
| Lub teeb muaj nuj nqi | Txhawb nqa | ||||||||||||
| Optional Functions | |||||||||||||
| Ntiv tes | Certified los ntawm FBI | ||||||||||||
| Barcode Scanning | 1DLaserScanner Index(Internal): Honeywell N4313 los yog Zebra EM1350 2D Barcode Scanner Index(Internal): Newlands EM3296 Honeywell N3680 MotorolaSE4750 Honeywell N6603 | ||||||||||||
| NFC | Txhawb NFC/NXP, 13.56MHZ ISO14443A, B thiab ISO15693 raws tu qauv, nyeem nrug 0-3cm, Tag kev them nyiaj yug; hom: SR176, SRIX4 (HOM-B), I-Code2, TI RFID Tag-nws HF-I, EM4034, Mifare Classic ETC | ||||||||||||
| LF RFID nyeem ntawv | 134.2KHZ LF RFID, txhawb ISO11784/5 raws tu qauv, txhawb kev nyeem EM, TEMID, TK phaib thiab tshaj IC card (FDX / HDX) 125KHZ LF RFID, txhawb kev nyeem daim npav ID | ||||||||||||
| UHF RFID nyeem ntawv | Internal ThingMagic M6E-NANO, txheem EPC C1 GEN2 / ISO 18000-6C, tso zis zog 10dBm-30dBm Nyeem nrug: Ib qho tag: {{0}}MHz 1m ,865 rau 868Mhz 0.7m, Pawg tag nyeem: 0.2m Ceramic kav hlau txais xov: 0.3db (25 * 25 * 4mm) | ||||||||||||
| Appilcation | |||||||||||||
Peb cov ntsiav tshuaj muaj peev xwm siv tau rau hauv tub rog, tsiaj txhu thiab lwm yam haujlwm:
 ● Lub tsheb mounted lub computer tuaj yeem nkag tau tam sim ntawd cov ntaub ntawv hauv lub sijhawm kom ua tau zoo. Nws siv cov zaub loj los txhim kho kev pom thiab kev ruaj ntseg los txhim kho qhov tseeb ntawm kev ua haujlwm. Rau cov neeg ua haujlwm hauv warehouses, faib lossis tsheb thauj mus los, kev teeb tsa tsheb ntawm cov khoos phis tawj yog qhov kev xaiv zoo. Nws tuaj yeem ruaj ntseg ntsia hauv lub forklift, muab kev ua haujlwm, kev teem sijhawm, taug qab, thiab qhov tseeb qhov chaw ntawm ib qho lossis cov khoom hauv tag nrho lub tsev khaws khoom. Lub tsheb mounted ntsiav tshuaj muaj cov qauv ruaj khov thiab tuaj yeem ua haujlwm tau zoo hauv ib puag ncig no. Piv txwv li, refrigerate ib puag ncig, cua, nag lossis hnub. Ntxiv nrog rau kev tiv thaiv plua plav thiab kua, lawv tuaj yeem tiv taus qhov kub thiab txias thiab cuam tshuam thiab kev co ntawm lub tsheb txawb. |
 ● Kev ua tau zoo ntawm Senter ntsiav tshuaj muaj qhov poob-pov thawj thiab tsis kub tsis kam thiab tsis kub tsis kam tuaj yeem siv dav hauv kev ua tub rog. Lub scanning muaj nuj nqi ntawm RFID thiab GPS tuaj yeem ua tiav qhov tseeb ntawm cov neeg ua haujlwm taug qab txhawm rau txhawm rau txhim kho cov txheej txheem kev sib tw zoo dua thiab muab kev lav zoo rau kev sib ntaus sib tua. Thiab nws yog raws li US cov tub rog ntawv pov thawj. |
| Video | |||||||||||||
| Khoom siv | |||||||||||||
| FAQ | |||||||||||||
Q: Koj puas yog cov chaw tsim khoom?
A: Yog, peb yog cov chaw tsim khoom.Peb tuaj yeem muab kev pabcuam OEM / ODM customized raws li peb cov neeg siv khoom ntau daim ntawv thov thiab kev thov.Txhua yam ntawm peb cov khoom muaj patented tag nrho, ID / MD tsim, kho vajtse thiab software, pwm, sib dhos yog ua los ntawm peb. tus kheej pab neeg.
Q: Koj puas muab SDK rau kuv?
A: Yog lawm, peb muab SDK pub dawb yog tias koj xaj qauv. Tsis tas li ntawd, peb kuj muaj kev txhawb nqa engineers los pab koj nrog kev txhim kho software.
Q: Qhov kev txiav txim yam tsawg kawg nkaus (MOQ) yog dab tsi?
A: Peb lees txais ib chav rau cov khoom txheem.we tuaj yeem kho nrog koj lub logo yog tias xav tau. Yog tias xav tau OEM, yuav pom cov ncauj lus kom ntxaws thiab paub meej MOQ rau koj los ntawm peb lub tuam txhab muag khoom.
Q: Peb puas tuaj yeem tau txais cov qauv dawb?
A: Thov txim, feem ntau peb yuav tsis muab cov qauv dawb. Yog tias tus neeg siv khoom lees paub qhov kev qhia tshwj xeeb thiab tus nqi, lawv tuaj yeem xaj cov qauv ua ntej rau kev kuaj thiab ntsuas.
Q: Kuv puas tuaj yeem xaiv ntau txoj haujlwm rau hauv 1 lub cuab yeej?
A: Yog lawm, koj tuaj yeem xaiv ntau yam fuction rau hauv onedevice, Cov haujlwm sib txawv nyob ntawm cov qauv khoom, kev xaiv ua haujlwm: RFID (LF / HF / UHF) 1 ntiv tes / Bar code scanner.
Q: Yuav xaj thiab them li cas?
A: Peb lees txais T / T (kev xa nyiaj hauv tuam txhab), Alibaba hauv online, Western Union 1 Trade Assurance
Q: Koj cov khoom Warranty yog dab tsi?
A: Peb Muab 24 Lub Hlis Warranty tom qab xa khoom xa tuaj.
Q: Kuv puas tuaj yeem txuas ntxiv warranty?
A: Peb muab kev tiv thaiv ncua mus txog 36 Lub Hlis, thiab tus nqi rau kev tiv thaiv txuas ntxiv yog 10 feem pua.
Q: Nws yuav siv sijhawm ntev npaum li cas rau kev xa khoom?
A: Rau lub sijhawm ua khoom lag luam nyob ib ncig ntawm 3-10 hnub nyob ntawm qhov xav tau, thiab lub sijhawm xa khoom los ntawm DHL / UPS / FEDEX / TNT, lub sijhawm xa khoom yuav nyob ib ncig ntawm 3-5 hnub ua haujlwm. Rau qee qhov chaw nyob deb, lub sijhawm xa khoom tuaj yeem ntev me ntsis.
Q: Yuav kho lub cuab yeej li cas yog tias muaj teeb meem?
A: Peb yuav muab kev pabcuam online los daws teebmeem; Yog tias muaj teeb meem kho vajtse, peb tuaj yeem xa cov khoom lossis cov khoom siv thiab qhia cov neeg siv khoom kom haum yog tias lawv muaj cov kws tshaj lij lossis tuaj yeem xa rov qab rau peb los kho nws.
Q: Koj puas tuaj yeem ua customized thiab preload peb software?
A: Peb yog cov kws tshaj lij rugged ntaus ntawv tsim khoom txij li xyoo 1996
