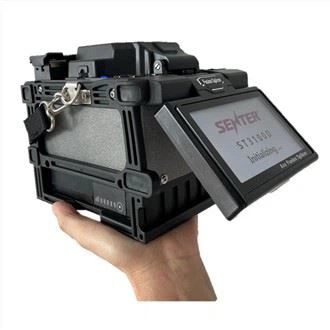

ST3100H Ribbon Fiber Fusion Splicer

√ Muaj feem xyuam rau 2-12 ribbon fiber ntau splicing
√ Kev sib raug zoo, ntiaj teb tus qauv fusion poob
√ 20s splicing lub sij hawm, cua sov 1-2/4-12 fiber ribbon 26s/40s
√ Muaj feem xyuam rau ntau hom fibers (SM / MM / DS / NZDS)
√ Ruggedized lub cev, tsis muaj dej, tiv thaiv plua plav, tiv thaiv kev poob siab √ Pluggable Li-roj teeb, txhawb kev them nyiaj cais
√ Yooj yim rau kev txij nkawm, yooj yim los hloov cov electrodes
√ USB chaw nres nkoj rau software kho dua tshiab, cov ntaub ntawv xa tawm
√ Txhawb 4000/100 pawg fusion cov ntaub ntawv / fusion duab

Xa kev nug

Khoom Taw qhia

Paub meej Display

2022-12-06 143418

Specifications

Txoj kev alignment	Clad rau Clad
Siv tau fiber ntau	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655)
Fiber cores kom muaj nuj nqis	Ib cores, 2-12 cores
Txoj kab uas hla ntawm txheej	250~400μm
Hom splice poob	SM:{0}}05dB, MM:0.02dB, DS:0.08dB, NZDS:0.08dB
Rov qab poob	>60db ib
Splicing program	40 pawg
Ua haujlwm hom	Manual/Automatic
Nws pib cua sov	Muaj
Lub sij hawm splicing	20 vib nas this
Lub sij hawm cua sov	1-2 cores 26 vib nas this, 4-12 cores 40 vib nas this
Fiber magnification	25X
Saib cov zaub	Dual siab rhiab heev lub koob yees duab, 5 nti 800 * 480 LCD saib
Cov ntaub ntawv khaws cia	4000 pawg cov ntaub ntawv cov ntaub ntawv thiab 100 pawg duab
Kev ntsuam xyuas poob	Muaj
Kev ntsuas nruj	1.8-2.2N
Interface	GUI zaub mov interface, ua haujlwm yooj yim dua
Roj teeb muaj peev xwm	5200mAh Li-roj teeb, 150 cycles splicing thiab cua sov
Fais fab mov	Adaptor, tswv yim: AC100-240V(50/60HZ), tso zis: DC11-13.5V
Electrode lub neej	Ntau tshaj 3000 ARC tso tawm, tuaj yeem hloov tau yooj yim
Terminals	USB 2.0 chaw nres nkoj, rau kev hloov kho software, cov ntaub ntawv xa tawm
Kev ua haujlwm	Qhov siab: 0-5000m, Humidity: 0-95 feem pua, Kub: -10degree -ua plus 50degreeCua ceev: max 15m / s
Dimension	155 hli (L) x 144 hli (W) x 155 hli (H)
Qhov hnyav	2.3kg suav nrog roj teeb
