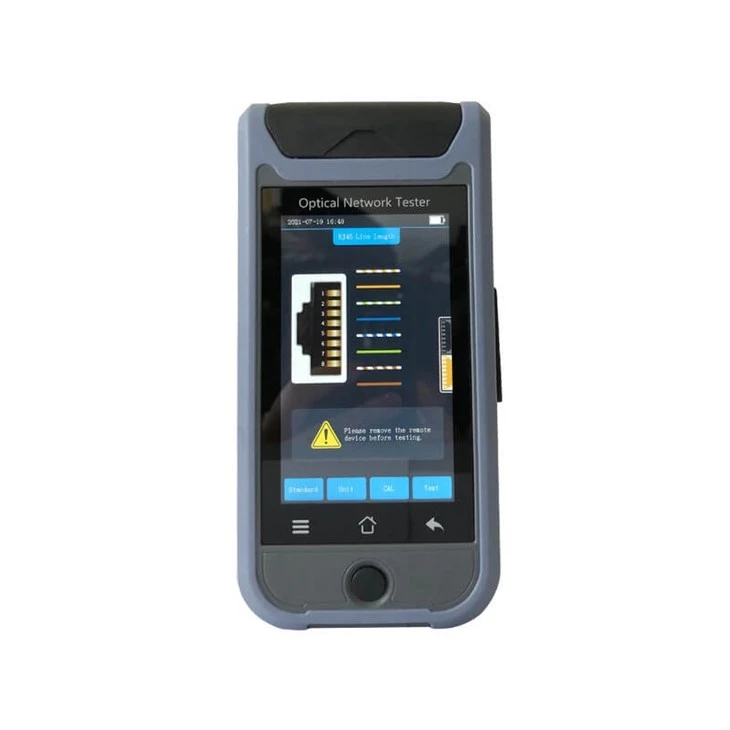

ST3200F SM OTDR 1310/1550nm nrog rj45 xeem
Nws koom ua ke 12 lub luag haujlwm, xws li pib OTDR, kws tshaj lij OTDR, daim ntawv qhia kev tshwm sim, OPM, RJ45 cable tracker, thiab "computer level" cov ntaub ntawv tswj kom tau raws li ntau yam kev xeem yuav tsum tau ua nyob rau hauv ntau zaus. Raws li cov chaw tsim khoom ntawm OTDR, peb tuaj yeem muab OTDR nrog cov khoom zoo, tus nqi qis thiab cov kev pab cuam tom qab muag zoo dua.
Specification:
|
OTDR |
|||||||
|
Qauv |
ST3200F-A |
ST3200F-B |
ST3200F-C UAS |
ST3200F-D |
ST3200F-E |
||
|
Hom |
G.652 SM |
||||||
|
Lub wavelength |
1310/1550 ± 20nm |
1310/1550 ± 20nm |
1625nm ua |
1650nm ua |
850/1300nm (MM) |
||
|
DynamicRange |
26dB/24dB |
32/30 dB |
22dB |
22dB |
22/24 dB |
||
|
EventBlindZone |
2.5m |
||||||
|
ATT BlindZone |
8m |
||||||
|
Kuaj Ntau |
500m/1km/2km/4km/8km/16km/32km/64km/100km |
||||||
|
Pulse Dav |
3ns / 5ns / 10ns / 20ns / 30ns / 50ns / 80ns / 160ns / 320ns / 500ns / 800ns /1us/2peb/3peb/5peb/8peb/10peb/20peb |
||||||
|
Qhov tseeb |
± (1m+Sample ncua sij hawm+0.005%×Test nrug) |
||||||
|
Linearity |
Tsawg dua los yog sib npaug0.05dB/dB |
||||||
|
Cov ntsiab lus piv txwv |
16k~128k |
||||||
|
SamKev daws teeb meem |
0.05m~8m |
||||||
|
LossResolution |
0.001dB |
||||||
|
Loss Threshold |
0.20dB |
||||||
|
RangeResolution |
0.001m |
||||||
|
RefractiveIndex |
1.00000-2.00000 |
||||||
|
Reflection Acc |
± 3dB |
||||||
|
Cov ntaub ntawv hom |
SOR Standard File Format |
||||||
|
Poob Analysis |
4-point method /5-point method |
||||||
|
Laser kev nyab xeeb |
Chav II |
||||||
|
Txuas |
FC / UPC (Kev hloov pauv tau SC,ST) los yog SC/APC |
||||||
|
Refresh Rate |
3 Hz (Tua yp.) |
||||||
|
Multitasking |
Txhawb nqa |
||||||
|
OPM |
LS |
RJ45 Cable Length |
|||||
|
Wave Range |
800nm ua~1 700nm |
Lub wavelength |
Zoo ib yamOTDR |
Test nrug |
Ntau dua lossis sib npaug 300m |
||
|
Kuaj Ntau: -70~+10dBm/ -50~+26dBm |
Hom Laser |
FP - LD |
Lwm tus |
||||
|
Hwj chim |
Ntau dua lossis sib npaug-5dBm |
Zaub:4.3ib 800×480 IPS TFT-LCDkov npo |
|||||
|
Kev daws teeb meem |
0.01dB |
Stabilitycw, ± 0.5dB/15min (Tom qab15 feeb ntawm preheating) |
|||||
|
Tsis paub meej |
±5% |
FC/UPC(SC, ST muaj) |
Fais fab mov:AC / DCadapter Input:100V ~ 240V, 50/60Hz, 0.6A Tso zis: 5v 2A Lithium roj teeb:3.7V, 4000mAh |
||||
|
Zaus iden |
CW/270/330/1k/2 kH ua |
CW / 270Hz / 330Hz / 1kHz / 2k |
|||||
|
Txuas |
Universal FC/SC/ST |
WaveRecog ua |
Txhawb nqa |
Roj teeb ua haujlwm |
Continuous test> 12h |
||
|
Wave Recog |
Txhawb nqa |
Optical Loss Test |
Cov ntaub ntawv khaws cia |
8 GB ntawm,Ntau dua lossis sib npaug20 txhiab nkhaus |
|||
|
VFL |
Lub wavelength |
Ib yamnrog LS |
Cov ntaub ntawv interface |
USB HomC |
|||
|
Lub wavelength |
650nm ± 20nm |
IL Test |
Txhawb nqa |
Ua haujlwm kub |
-10 degree ~ +50 degree |
||
|
Tso zis zog |
Ntau dua lossis sib npaug10mW ua |
RJ 45cable tracker |
Cia Kub |
-40 degree ~ +70 degree |
|||
|
Hom |
CW/1Hz / 2 Hz |
Hom |
Digital taug qab |
txheeb ze humidity |
0〜95% Tsis Condensing |
||
|
Connector FC / UPC |
Nyob deb |
Ntau dua lossis sib npaug300m |
Wyim |
Tsawg dua los yog sib npaug rau 0.5kg |
|||
|
Qib kev nyab xeeb |
Chav Kawm III |
Txhawb Online/Line PairTracker |
Loj |
173mm ib×109mm ib×45mm ib |
|||
