Hmo ntuj pom kev sab nraum zoov lub koob yees duab

Lub koob yees duab yees duab

Lub teeb pom kev dav dav siv lub koob yees duab-qib siab-txhais phom-hom lub koob yees duab nrog tus qauv 16 lab pixel lub teeb dav dav(optional, saib cov lus xaiv kom paub meej)

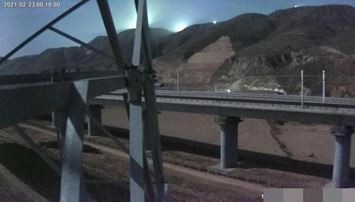

Lub teeb pom kev hmo ntuj siv lub hnub qub-theem qis-illuminance lub koob yees duab nrog tus qauv 2 lab pixel low-illuminance lens(optional, saib cov lus xaiv kom paub meej)

Ntauwd puag puag ncig lub koob yees duab tuaj yeem nruab nrog tus qauv 8 lab pixel lub teeb pom kev dav dav(optional, saib cov lus xaiv kom paub meej)

Txoj kev sau duab

Teem sijhawm lub sijhawm luv luv / txhawb nqa phau ntawv tuav cov duab

kav hlau txais xov

Built-in kav hlau txais xov

GPS

Txhawb GPS, Beidou positioning

txoj kev sib txuas lus

2G / 3G / 4G wireless kis tau tus mob tau txais los ua kom tau raws li kev hloov pauv ntawm Tuam Tshoj Telecom, China Unicom, thiab Tuam Tshoj Mobile. Nws txhawb nqa 2G, 3G, thiab 4G tes hauj lwm ntawm peb tus tswv, thiab tus neeg teb xov tooj tuaj yeem xaiv tau raws li qhov chaw nyob.

Saib xyuas lub voj voog

Kev tsom xam cov duab pem hauv ntej-kawg lub sijhawm ua haujlwm tsis pub dhau 5 feeb, thiab lub sijhawm rov qab los yog 1 teev, thiab lub sijhawm ua piv txwv tuaj yeem teeb tsa dawb; qhov kev soj ntsuam pem hauv ntej tom qab lub cuab yeej siv yees duab, kev txheeb xyuas cov kev phom sij zais tau rov qab tam sim ntawd, thiab tsis muaj kev phom sij zais rov qab tsis tu ncua.

Lub koob yees duab kho muaj peev xwm

Nws tuaj yeem hloov kho manually hauv txhua qhov kev taw qhia raws li txoj kab kev taw qhia

MTBF

Ntau dua lossis sib npaug30000h

Xyuas thiab debug

Nws tuaj yeem raug tshuaj xyuas thiab debugged yam tsis tau disassembled lub tshuab

Kev tiv thaiv qib

IP67

Khoom zoo

Tsawg dua lossis sib npaug li 12Kg (nrog rau cov hnub ci vaj huam sib luag thiab cov hlua khi)

Fais fab mov

Hnub ci vaj huam sib luag thiab roj teeb(optional, saib cov lus xaiv kom paub meej)

Lub roj teeb tau them tag nrho nrog lub zog txuas ntxiv

30 hnub

Main ncej khoom

Polycarbonate

Ua haujlwm kub

-40 degree - ntxiv rau 70 degree

txheeb ze humidity

5 feem pua-100 feem pua ​​RH

Atmospheric siab

55 kp ua-106 kPa ib

Tsim kev pabcuam lub neej ntawm tag nrho lub tshuab

Tsis pub tsawg tshaj 8 xyoo

encryption

Expanded encryption nti(xaiv tau, saib lub rooj sib txuam kom paub meej)

Scala b-le muaj nuj nqi

Pem hauv ntej kawg tsom xam

(xaiv tau, saib lub rooj sib txuam kom paub meej)

Ntauwd qaij

(xaiv tau, saib lub rooj sib txuam kom paub meej)

Pab cav

(xaiv tau, saib lub rooj sib txuam kom paub meej)

Module ntsuas kub

(xaiv tau, saib lub rooj sib txuam kom paub meej)

Suab thiab teeb ceeb toom

(xaiv tau, saib lub rooj sib txuam kom paub meej)

Suab sau

(xaiv tau, saib lub rooj sib txuam kom paub meej)

Micrometeorology

(xaiv tau, saib lub rooj sib txuam kom paub meej)

Channel koob yees duab

General cursor configuration: 16 lab pixels, xaiv tau: 21 lab pixels, 24 lab pixels

Hmo pom kev xaiv: 2 lab pixel lub koob yees duab qis

Lub koob yees duab down-view

Yeem: 8 lab pixel wide-angle lub koob yees duab, 16 lab pixel wide-angle lub koob yees duab

Fais fab mov module specifications

6.4V15AH hlau lithium ntxiv rau 20W12V photovoltaic vaj huam sib luag

6.4V20AH hlau lithium ntxiv rau 30W12V photovoltaic vaj huam sib luag

6.4V37.5AH hlau lithium ntxiv rau 30W12V hnub ci vaj huam sib luag

6.4V20AH hlau lithium ntxiv rau 12V20W photovoltaic vaj huam sib luag

Encryption nti

Yeem: CLP Puhua encryption nti; NARI encryption nti, NVR uas ua tau raws li B interface thiab cov kev cai encryption ntawm State Grid

Pem hauv ntej kawg tsom xam

Optional ICT pem hauv ntej-kawg tsom xam module (software acceleration module)

Optional Baidu pem hauv ntej-kawg tsom xam module (software acceleration module)

Optional ntse core pem hauv ntej-kawg tsom xam module (hardware acceleration module)

Optional Huawei pem hauv ntej-kawg tsom xam module (hardware acceleration module)

Ntauwd qaij

Inlination ntsuas ntau yam: dual axis {{0}} degree ~ ntxiv rau 10 degree (yeem -30 degree ~ ntxiv rau 30 degree, -60 degree ~ ntxiv rau 60 degree lossis { {6}} degree ~ ntxiv rau 90 degree ); inclination ntsuas yuam kev: Tsawg dua los yog sib npaug rau ± 0.05 degree; Inlination ntsuas kev daws teeb meem: ± 0.01 degree

Pab cav

Lub koob yees duab pixels: ib txwm cursor yog nruab nrog 8 lab pixels. Yeem 16 lab pixel lub koob yees duab dav dav, 2 lab pixel hmo pom lub koob yees duab

Micrometeorology

Kev ntsuas kub ntau: -30 degree-ntxiv rau 85 degree; Kev ntsuas qhov tseeb: ± 0.5 degree; daws teeb meem: 0.1 degree ;

Kev ntsuas av noo: 0-100 feem pua; Kev ntsuas qhov tseeb: ± 4% RH; daws teeb meem: 1% RH;

Atmospheric siab ntsuas ntau: 450hPa-1060hPa; Kev ntsuas qhov tseeb: ± 0.3hPa; daws teeb meem: 0.1hPa;

Cua ceev ntsuas ntau yam: 0-75m / s; Kev ntsuas qhov tseeb: ±({1}}.3 ntxiv rau 0.03V) m/s; daws teeb meem: 0.1m / s;

Kev ntsuas cua qhov ntsuas: 0-36 0 degree; Kev ntsuas qhov tseeb: ± 3 degree; kev daws teeb meem: 0.5 degree;

Kev ntsuas dej nag: 0-4mm/min;   measurement error: ±0.4mm (when ≤10mm); ±4% (when >10mm); daws teeb meem: 0.2mm;

Illumination ntsuas ntau yam: 0-65535Lux; Kev ntsuas qhov tseeb: ± 7 feem pua

Hlau ntsuas kub ntsuas module

Kev ntsuas kub ntau: -55 degree-ntxiv 125 degree; Qhov ntsuas kub tsis raug: tsawg dua lossis sib npaug rau 0.5 degree ; Kev ntsuas kub ntsuas: 0.1 degree;

Suab sau

Sau cov suab zais hauv ib puag ncig ib puag ncig, txheeb xyuas hom suab, tsa lub cuab yeej kom ntes thiab xa lub tswb

Suab thiab teeb ceeb toom

Ua tau raws li qhov yuav tsum tau ua kom lub tswb nrov tuaj yeem hnov ​​​​thiab lub suab cov ntsiab lus tuaj yeem ua kom pom tseeb ntawm qhov deb ntawm 200 meters, thiab lub teeb pom kev zoo tuaj yeem pom.
