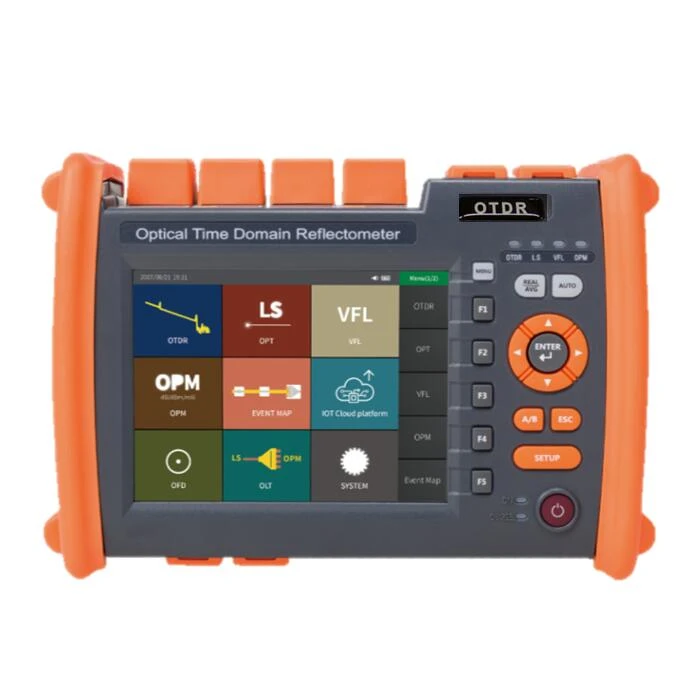

OTDR SM Optical Fiber Test rau Ftth
SENTER ST3200D OTDR nrog Optical Power Meter VFL Lub Teeb Qhov Chaw
ST3200D SM OTDR integrates the OTDR/light source, optical power meter, and VFL functions in one body. It uses touch and key dual operation modes.
Qauv | ST3200D |
OTDR | |
Hom Fiber | G.652 |
Lub wavelength | 1310nm ua±20nm / 1550nm±20nm ua |
Dynamic Range | 32dB / 30dB |
Kev tshwm sim qhov muag tsis pom kev | 1m |
ATT qhov muag tsis pom kev | 6m |
Kuaj Ntau | 500m/1km/2km/4km/8km/16km/32km/64km/12 8km/256km |
Pulse Dav | 5 ns / 10ns / 30ns / 50ns / 80ns / 160ns / 320ns / 500ns / 800ns / 1000ns / 3000ns / 5000ns / 8000ns / 10000ns / 20000ns |
Ranging raug | ±( {{0}}.75m plus Sample interval plus 0.005 feem pua x Test nrug) |
Poob qhov tseeb | ±0.05dB/dB |
Cov ntsiab lus piv txwv | 16k〜256k |
Qauv daws teeb meem | 0.05m16m |
Reflection Accuracy | ±3dB |
Cov ntaub ntawv hom | SOR Standard File Format |
Poob Analysis | 4-point method / 5-point method |
Laser Kev Nyab Xeeb Qib | Chav II |
Refresh Rate | 3Hz (Tib.) |
Cov ntaub ntawv khaws cia | Internal cia: 100M (<3000 curves)="">; External: 4G bit |
Txuas | FC / UPC (Kev hloov pauv tau SC,ST) |
Cov ntaub ntawv interface | USB,Mini -USB,10M / 100M Ethernet Chaw nres nkoj |
OPM | |
Ntau yam wavelength | 800 nm 1700 nm |
Txuas | Universal sib koom FC / SC / ST |
Kuaj Scope | -50dBm〜ntxiv26dBm ib |
Tsis paub meej | ±5 percent |
Calibration Wavelength | 850nm / 980nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm / 1650nm |
LS | |
Lub wavelength | Raws li OTDR cov zis wavelength |
Tso zis zog | Ntau dua lossis sib npaug rau -5dBm |
Kev ruaj ntseg | CW, ±0.5dB/15min (Test after 15 minutes of boot-up preheating) |
Txuas | FC / UPC (Kev hloov pauv tau SC,ST) |
VFL | |
Lub wavelength | 650nm±20nm |
Tso zis zog | Ntau tshaj lossis sib npaug li 2mW |
Hom | CW/lHz/2Hz |
Txuas | FC/SC/ST |
Lwm tus | |
Zaub | 5.6 nti xim LCD ntxiv rau kov npo |
Fais fab mov | AC / DC Adapter: Input: 100V〜240V, 50/60Hz, 0.6A tso zis: 12V-19V, 1.5A Li-Battery: 7.4V, 5200mAh |
Lub sijhawm ua haujlwm roj teeb | Ntau tshaj lossis sib npaug li 10h |
Ua haujlwm kub | -10 degree〜ntxiv 50 degree |
Cia Kub | -40 degree〜ntxiv rau 70 degree |
txheeb ze humidity | 0 〜95 feem pua, Tsis Condensing |
Qhov hnyav | Tsawg dua los yog sib npaug1.2 kg ib |
Loj | 208mmx110mmx56mm |
Q | Kuv puas tuaj yeem luam peb tus kheej lub logo ntawm cov khoom? |
A | Yog, thov xa koj lub logo rau peb. |
Q | Koj puas tuaj yeem muab kev pabcuam OEM / ODM? |
A | Yog, peb ua tau. Thov qhia peb cov ntsiab lus ntawm koj qhov kev xav tau |
Q | Koj tuaj yeem ua pov thawj koj li kev lag luam credit thiab ua kom kuv txoj kev lag luam nyab xeeb? |
A | Koj tuaj yeem siv Alibaba Trade Assurance rau koj cov nyiaj them poob haujlwm. Yog tias qhov kev xa khoom tsis sib haum nrog kev sib cuag. Kev Lag Luam Kev Lag Luam yuav muaj kev nyab xeeb rau koj cov nyiaj thiab peb tsis muaj credit tsis zoo nyob rau xyoo tas los. |
Q | Vim li cas thiaj xaiv peb los koom tes? |
A | 1. Peb muaj thawj - cov kab ntau lawm thiab cov kev tswj xyuas nruj. 2. Peb muaj cov txheej txheem kev tshaj lij thiab kev tsim khoom loj los lav kev xa khoom sai thiab xa khoom raws sijhawm. 3. Peb tuaj yeem muab tus nqi sib tw tshaj plaws kom tau raws li koj cov peev nyiaj. 4. Peb kuj tsim thiab tsim cov khoom tshiab raws li peb cov kev paub nplua nuj. 5. Peb muaj pab pawg tshaj lij los muab kev qhia dav - nres kev pabcuam rau koj. |
